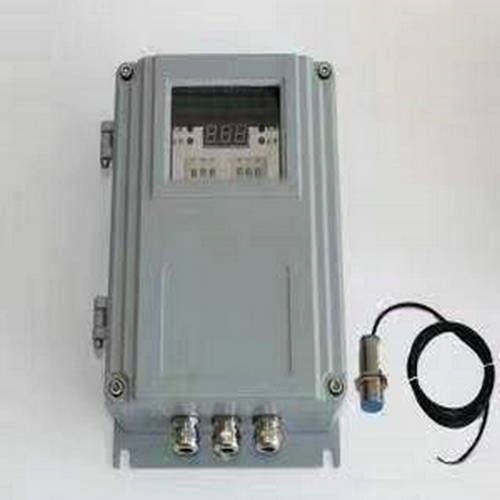

conveyor elevator speed controller

Function Symbols

Function

Range Set

Factory Value

Note

OUr 1

Relay output

0 1 2 3 4

0

0. Upper limits alarm

1.lower limits alarm

2. within range alarm

3. outer range alarm

4. lower limit return difference alarm

Further info please refer to “table 2”

Hy1

Return difference control

0-9999

0100

Out1 relay return difference release

Our2

Relay output mode

0 1 2 3 4

1

1. Upper limits alarm

1.lower limits alarm

2. within range alarm

3. outer range alarm

4. lower limit return difference alarm

Further info please refer to “table 2”

Hy2

Return difference control

0-9999

0100

Out 2 relay return difference release

CP-R

Line speed perimeter

0.000-9.999

1.000

Line speed perimeter

CP-b

Rotation/line speed impulse

0-9999

0001

Rotation/line speed impulse equivalent

0 upper limits alarm:monitoring value > set value,relay gets absorbed;

monitoring value<set value,relay releases

1 lower limits alarm: monitoring value <set value,relay gets absorbed;

monitoring value> set value,relay releases

2. within range alarm: monitoring value within value set + hy1 value,relay gets absorbed

 set value > or < value set +  hy1 value, relay releases

3. outer range alarm: monitoring value within value set + hy1 value,relay releases

Set value > or < value set + hy1 value,relay gets absorbed

4.lower limit return difference alarm: display value >value set + hy1 value,activates relay calculation but not absorbed;display value< value set,even to 0,relay remains absorbed

within range alarm eg.: value set:200,    hy1 100,alarm range within 100 and 300,other ranges no alarm

outer range alarm e.g: value set:200, hy1100,no alarm between 100 and 300,other ranges alarm

lower limit return difference alarm e.g.: value set 500+ hy1 100,rotation activates relay without output, in case rotation >600,rotation drop below 500,relay gets absorbed
