Description

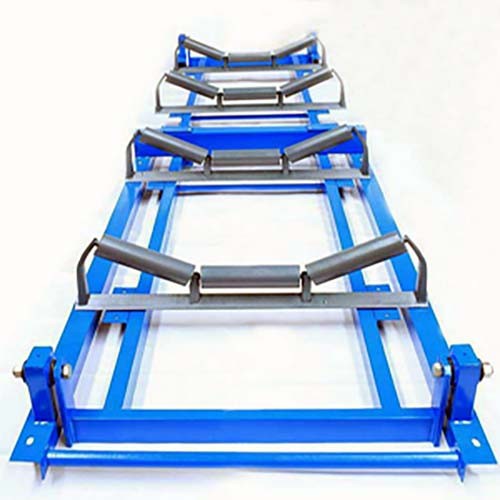

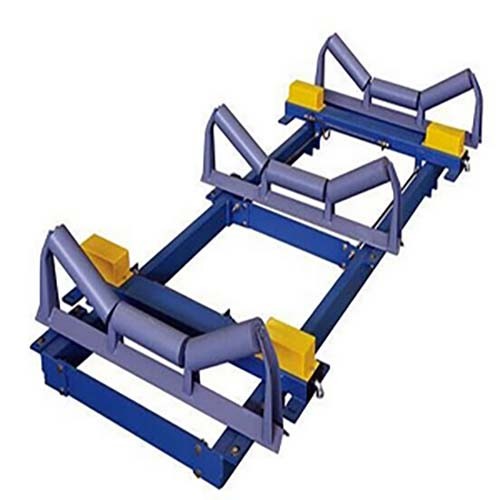

HS-18 serials electric weighing feeder is one high-tech product integrating conveying,scaling and ration control. As one ideal equipment located in the belt conveyor to constantly scale bulk materials,it is applied to continuous weigh varied block of materials,granules and even powder materials in common production circumstance.
In addition,it is also widely used under circumstances of acid,alkali,salt and atmosphere corrosion etc.
Therefore,it is widely used in construction materials,metallurgy,power,chemical,coal,mining,ports and so on.
MAIN PERFORMANCE:
a. All suspension structure without trunnion and movable parts,direct pressure upon sensors,less force transmission and high accuracy.
b. Unique rectangle lever,sound rigidity,no deformation ,reliable zero stability.
c. High resistance against sideways and horizontal forces assures little influence of belt deviation and landing materials deviation upon system accuracy.
d. 4 load sensors especially applied with high scaling accuracy
e. New speed-measuring rollers,high sensitive to the belt signals
f. Broad weigh space,three units of rollers assures little effects of belt upon load sensors
g. No movable units but unit structure with simple application,easy operation and little maintenance
h. Multiple output ways to meets various control needs
Belt conveyor angle of inclination less 18 degree
