Description

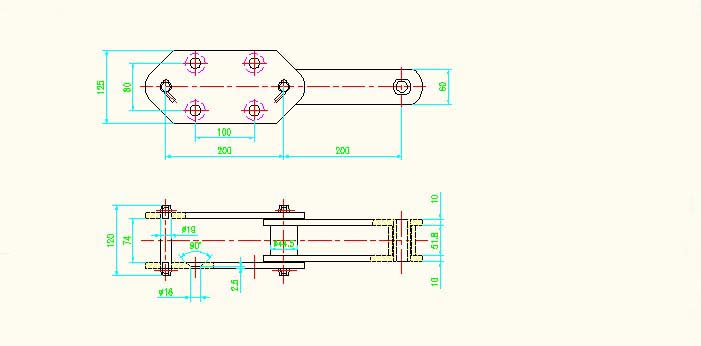

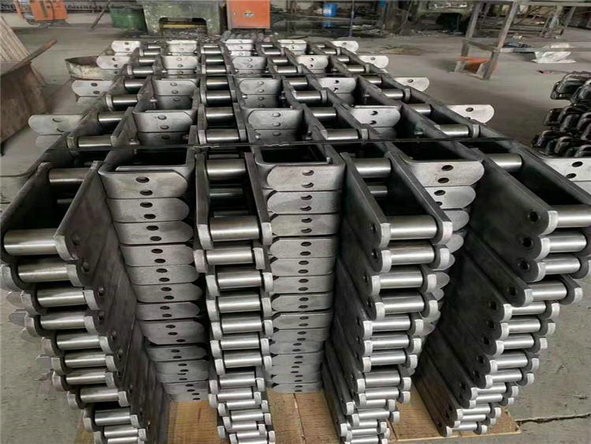

NE100 Plate Chain Series NE100 Hoist Hoisting Chain Bucket Elevator Manufacturer NE series plate chain bucket elevator is an inflow feeding type, the material flows into the hopper and is lifted by the plate chain, and unloads automatically under the action of material gravity. This series of hoists has many specifications (NE15~NE800, a total of 11 types) and a wide lifting capacity; it has high production capacity and low energy consumption, and can gradually replace other types of hoists. The main parameters are shown in the table below. The machine adopts a fully enclosed casing with low chain speed and almost no material return phenomenon, so the reactive power loss is small, the noise is low, and the service life is long.
Professional processing custom-made TH hoist hopper HL cement bucket elevator hopper NE hoist hopper NSE hoist hopper TCD hopper TGH hoist hopper TD hopper SCD hopper, custom-made non-standard special-shaped hopper, sprocket: transmission chain on the bucket elevator wheel. A sprocket is a solid or spoked gear that meshes with a chain link or a precisely pitched block on a cable, meshing with a roller chain to transmit motion.
e structure of the NE bucket elevator: the equipment capacity is small, the discharge slide is blocked, and the production capacity of the rear mechanical equipment is improved. 5. The lifting speed is slow, and the speed ratio of the transmission wheel needs to be changed. 6. The material cannot fill the hopper to the limit. 7. The lifting section is withdrawn, causing the output of the hoist to fail to meet the design requirements. 8. Hopper return, that is, the phenomenon that the materials thrown out of the hopper cannot all enter the discharge pipe but partly return to the machine base. Backflow is the reason for the low output of most elevators. The way to check the backflow is to put your ear on the barrel of the hoist, and see if there is a sound like rain in the earpiece, and judge the degree of backflow according to the size and density of the sound. This method is especially effective for iron shell hoists. 9. The material measurement method is improper, or the measurement is wrong. Check the meter, check the specific gravity of the material, and re-correct the calculation method.
Bucket elevator is a kind of vertical lifting equipment with belt or chain as the traction mechanism, and the height of transporting materials can reach 30-80 meters. It is suitable for lifting and transporting all kinds of powder, material and small pieces of materials. The HL type bucket elevator produced by our company has the characteristics of small footprint, wide range of lifting height, good sealing, reliable operation, high efficiency and low energy consumption. It is a continuous conveying machine that uses a series of hoppers evenly fixed on the endless traction member to lift materials vertically. It is divided into three types: ring chain, plate chain and belt.
