Description

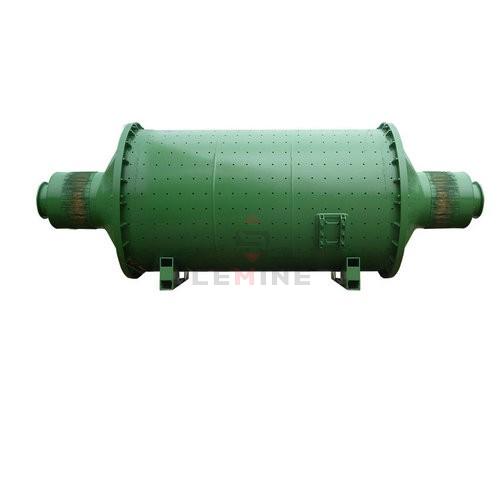

Ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quil shaft uniformly.There are ladder liner and ripple liner and different specifications of steel balls in the chamber.The centrifigual force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical Parameter:
|
Spec. |
Rotary Speed (R/MIN) |
Feed Size (MM) |
Discharge Size (MM) |
Capacity (T/H) |
Grinding Media Load(T) |
Main Motor |
Weight (T) |
|
Power (KW) |
|||||||
|
Ø900X1800 |
39 |
≤25 |
0.074-0.89 |
0.8-2 |
1.5 |
18.5 |
4.6 |
|
Ø900X3000 |
39 |
0.074-0.89 |
1-4 |
2.7 |
22 |
5.6 |
|
|
Ø1200X3000 |
36 |
0.074-0.4 |
1.6-5 |
3.5 |
37 |
12.8 |
|
|
Ø1200X4500 |
32 |
1.6-5.8 |
5 |
55 |
13.8 |
||
|
Ø1500X3000 |
27 |
2-5 |
7.5 |
75 |
15.6 |
||
|
Ø1500X5700 |
28 |
3.5-6 |
12 |
130 |
24.7 |
||
|
Ø1830X3000 |
25 |
4-10 |
11 |
130 |
28 |
||
|
Ø1830X6400 |
24 |
7-16 |
21 |
210 |
34 |
||
|
Ø1830X7000 |
24 |
8-18 |
23 |
245 |
36 |
||
|
Ø2100X3600 |
23 |
10-36 |
19 |
210 |
46 |
||
|
Ø2200X4500 |
21 |
12-23 |
27 |
280 |
48.5 |
||
|
Ø2200X6500 |
21 |
14-26 |
35 |
380 |
52.8 |
||
|
Ø2200X7000 |
21 |
15-28 |
35 |
380 |
54 |
||
|
Ø2200X7500 |
21 |
15-30 |
35 |
380 |
56 |
||
|
Ø2400X4500 |
21 |
18-45 |
30 |
320 |
65 |
||
|
Ø2400X8000 |
20 |
20-48 |
36 |
410 |
81 |
||
|
Ø2700X3600 |
21 |
19-75 |
39 |
400 |
83 |
||
|
Ø2700X4000 |
20 |
20-78 |
40 |
400 |
85 |
||
|
Ø2700X4500 |
20 |
22-85 |
48 |
430 |
89 |
||
|
Ø3200X4500 |
18 |
29-140 |
65 |
800 |
137 |
||
|
Ø3200X5400 |
18 |
30-180 |
81.6 |
800-1000 |
146 |
||
|
Ø3600X4500 |
17 |
35-210 |
88 |
1000 |
190 |
||
|
Ø3600X6000 |
17 |
38-240 |
117 |
1250-1500 |
220 |
||
|
Ø3600X8500 |
17 |
45-260 |
144 |
1800 |
260 |
