Description

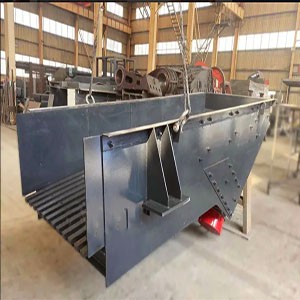

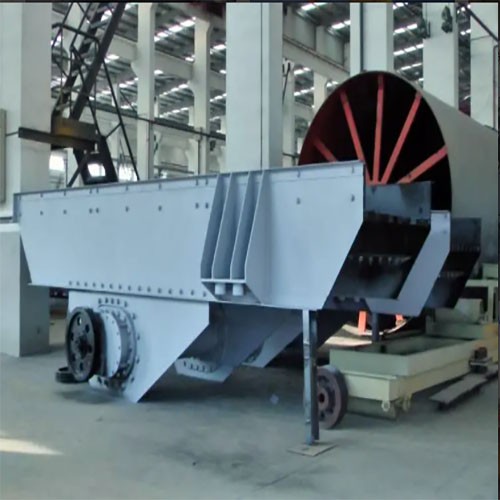

ZSW Series of vibrating feeder is composed of feeder groove,exciter,spring bearing,gear etc. Vibrating source of the groove feeding vibration is exciter,which is composed of two eccentric shaft and gear,the motor through the triangle to drive the active axis. The upper gear of the active axis drives the passive-axis with rotating,active and passive axis reverse rotation at the same time,making the body vibrate and continuous flow of materials,to achieve the purpose of conveying materials
Technical Parameter
|
Model |
Max Feed Size |
Capacity(T/H) |
Power (KW) |
Obliquity of Material Trough |
Trough Size (mm) |
|
ZSW3000X850 |
400mm |
80-120 |
7.5 |
0-10° |
3000X850 |
|
ZSW3800X960 |
500mm |
120-210 |
11 |
3800X960 |
|
|
ZSW4900X1100 |
630mm |
150-400 |
15 |
4900X1100 |
|
|
ZSW4900X1300 |
750mm |
280-450 |
22 |
4900X1300 |
|
|
ZSW6000X1300 |
750mm |
400-700 |
22 |
6000X1300 |
|
|
ZSW6000X1500 |
800mm |
500-900 |
30 |
6000X1500 |
|
|
ZSW6000X1800 |
900mm |
700-1200 |
37 |
6000X1800 |
|
|
ZSW6000X2000 |
1200mm |
800-1500 |
45 |
6000X2000 |
