Description

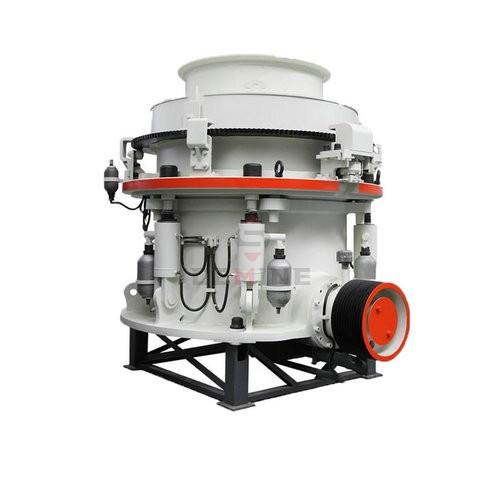

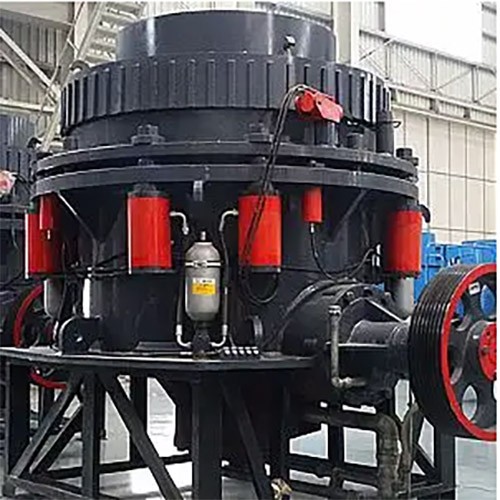

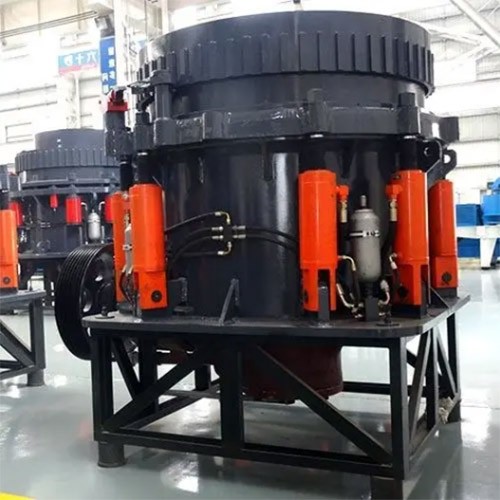

Compound Cone Crusher consists of frame,transmission device,hollow eccentric shaft,bowl-shaped bearing,crushing cone,springs and hydraulic pressure station for adjusting discharge opening, During operation,the engine rotates around a fixed point driven by the belt wheel or the coupling. The transmission shaft and the conical part of the crushing machine swing under the force from the eccentric bushing,which makes the crushing wall close to the pierced mortal wall internals. Then the ores will be impacted,squeezed and bent constantly in the crushing chamber.At last,the whole ore crushing process is finished.
Technical Parameter:
|
Model |
Max Feed (MM) |
Minimum Outlet Size(MM) |
Power (KW) |
Processing Capacity of the closing Edge(t/h) |
Weight(KG) |
|||||||||
|
6 |
10 |
13 |
16 |
19 |
22 |
25 |
38 |
54 |
64 |
|||||
|
CMC600 |
C |
95 |
10 |
37-45 |
|
20 |
25 |
30 |
35 |
45 |
50 |
|
|
5300 |
|
M |
72 |
6 |
37-45 |
18 |
20 |
25 |
30 |
35 |
50 |
45 |
|
|
||
|
CM1000 |
C |
160 |
13 |
90-110 |
|
|
80 |
100 |
135 |
150 |
175 |
235 |
|
10800 |
|
M |
115 |
10 |
90-110 |
|
65 |
75 |
90 |
120 |
135 |
150 |
|
|
10800 |
|
|
F |
80 |
8 |
90-110 |
52 |
62 |
72 |
78 |
115 |
|
|
|
|
10510 |
|
|
EF |
50 |
6 |
90-110 |
50 |
55 |
65 |
70 |
102 |
|
|
|
|
10510 |
|
|
CM1160 |
C |
180 |
13 |
110-132 |
|
|
115 |
135 |
150 |
180 |
200 |
260 |
|
15500 |
|
M |
130 |
10 |
110-132 |
|
100 |
110 |
120 |
135 |
165 |
175 |
|
|
||
|
F |
90 |
10 |
110-132 |
|
80 |
105 |
110 |
140 |
|
|
|
|
||
|
EF |
60 |
6 |
110-132 |
60 |
74 |
105 |
110 |
130 |
|
|
|
|
||
|
CM1300 |
C |
200 |
16 |
132-160 |
|
|
|
150 |
180 |
200 |
230 |
310 |
390 |
22300 |
|
M |
150 |
13 |
132-160 |
|
|
115 |
140 |
160 |
190 |
210 |
|
|
||
|
F |
102 |
10 |
132-160 |
|
90 |
115 |
145 |
160 |
|
|
|
|
||
|
EF |
70 |
8 |
132-160 |
|
88 |
110 |
135 |
155 |
|
|
|
|
||
|
CM1380 |
C |
215 |
19 |
185-220 |
|
|
|
|
200 |
220 |
230 |
350 |
440 |
26300 |
|
M |
160 |
16 |
185-220 |
|
|
|
155 |
180 |
200 |
220 |
|
|
||
|
F |
115 |
13 |
185-220 |
|
|
150 |
190 |
210 |
230 |
|
|
|
||
|
EF |
76 |
|||||||||||||
