Description

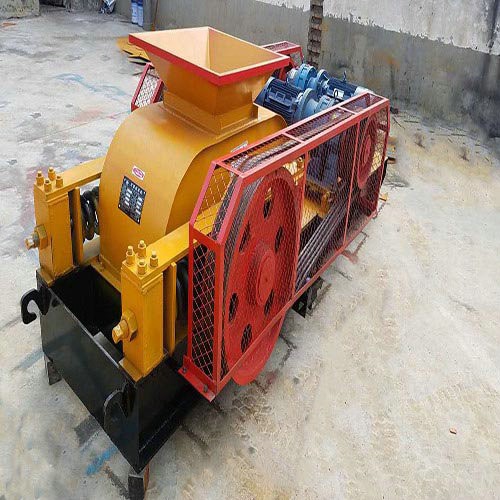

Roller Crusher mainly consists of roller,roller bearing,tightening device,adjusting device and driven device.Adjustment of discharging-material size:the wedge-shaped or gasket control is installed between two roll wheels.There is adjusting bolt in the top of the control.The wedge makes the active roll wheel away from fixable wheel,while the adjusting bolt is pulling up the wedge,this makes the gap in the two roll wedge is pulled down,the active roll wheel under the action of hold-down spring makes the gap and discharging become smaller.The gasket control through regulates the quantity or thickness of the gasket to adjust the sizes of discharged materials.
Technical Parameter:
Double Roller Crusher
Model
Max Feed Size(MM)
Capacity
(T/H)
Power
(KW)
Outlet Size
(MM)
Total Weight
(T)
2PG400X250
≤25
5-10
5.5x2
≤8
1.5
2PG610X400
≤36
3-9
15x2
2-9
4.5
2PG750X500
≤40
5-12
18.5x2
2-10
10.8
2PG750X700
≤40
6-16
22x2
2-10
12.2
2PG900X500
≤40
9-30
22x2
2-10
15
2PG900X900
≤40
11-45
37x2
2-10
16.8
2PG900X1200
≤40
15-60
55x2
3-12
20.8
2PG1200X1000
≤40
10-50
55x2
3-12
46.8
2PG1200X1200
≤40
18-68
75x2
3-12
48.6
