Description

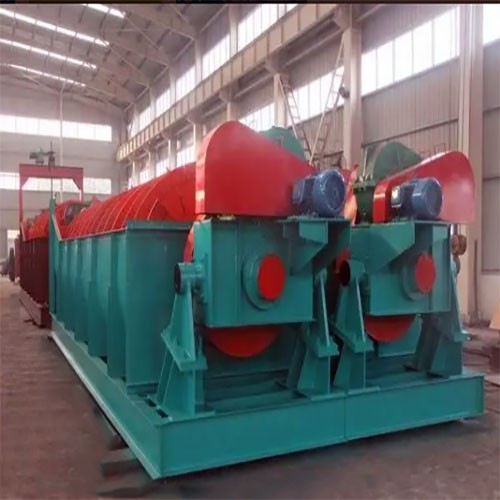

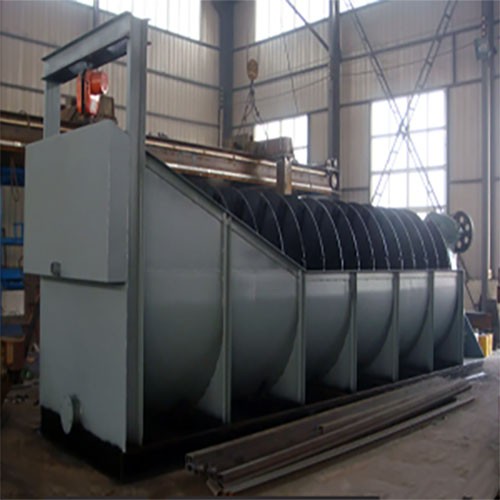

Classifier
Classifier is mainly consisted of driver,screw,trough,lifting device,bottom-support(bearing bush) and the discharging valve. The base adopts channel steel material, and the frame is welded with steel plate.Besides,the water input and spindle head of the screwing shaft use cast iron,making them durable and wear-resisting.Moreover,the lifting device has two types:motor-driven and hand-driven.
Classifier is a kind of mechanical classification equipment,which adopts this principle:different specific weight,so in the liquid,the fall velocity of them is different too. The fine ore particle will float over the water, and then be over-flowed out.On the contrary,the coarse ore particle will sink in the trough,and then be pushed to the upper by the screw,Moreover,it can classify the materials been grinded in the mill, and then filter them,use the flight to screw the coarse ore particles into the feeding opening and overflow the fine material out from the tube.
Technical Parameter:
|
Type |
Model |
Screw Dia (mm) |
Trough Length (mm) |
Rotary Speed (r/min) |
Capacity (t/d) |
Trough Angle (°） |
Motor Power(kw) |
Weight (kg) |
||
|
Sand Return |
Overflow |
Drive Motor |
Raise Motor |
|||||||
|
High Weir Type |
FG500 |
Ø500 |
4500 |
8-12.5 |
135-210 |
32 |
14-18.5 |
1.5 |
|
1980 |
|
FG750 |
Ø750 |
5500 |
6-10 |
340-570 |
65 |
3 |
|
3005 |
||
|
FG1000 |
Ø1000 |
6500 |
5-8 |
675-1080 |
110 |
7.5 |
|
5310 |
||
|
FG1200 |
Ø1200 |
6500 |
5-8 |
1170-1870 |
155 |
7.5 |
0.4 |
8000 |
||
|
FG1500 |
Ø1500 |
8300 |
4-6 |
1830-2740 |
235 |
11 |
0.4 |
9800 |
||
|
FG2000 |
Ø2000 |
8400 |
3-3.5 |
3240-5400 |
400 |
11 |
2.8 |
20500 |
||
|
FG2400 |
Ø2400 |
9200 |
2.5-4 |
4650-7450 |
580 |
15 |
2.8 |
25700 |
||
|
2FG1200 |
Ø1200 |
6500 |
5-8 |
2340-3740 |
310 |
5.5X2 |
0.4X2 |
13300 |
||
|
2FG1500 |
Ø1500 |
8300 |
4-6 |
3660-5480 |
470 |
7.5X2 |
0.4X2 |
22100 |
||
|
2FG2000 |
Ø2000 |
8400 |
3-5.5 |
6480-10800 |
800 |
11X2 |
2.8X2 |
36500 |
||
|
2FG2400 |
Ø2400 |
9200 |
2.5-4 |
9300-14900 |
1160 |
15X2 |
2.8X2 |
45800 |
||
|
2FG3000 |
Ø3000 |
12500 |
2-3.2 |
14600-23400 |
1785 |
18.5X2 |
4X2 |
73000 |
||
|
Immersed Type |
FC1000 |
Ø1000 |
7600 |
5-8 |
675-1080 |
85 |
14-18.5 |
7.5 |
0.4 |
6000 |
|
FC1200 |
Ø1200 |
8400 |
5-8 |
1170-1870 |
120 |
7.5 |
0.4 |
9280 |
||
|
FC1500 |
Ø1500 |
10500 |
4-6 |
1830-2740 |
185 |
11 |
0.8 |
12570 |
||
|
FC2000 |
Ø2000 |
12900 |
3-3.5 |
3240-5940 |
320 |
15 |
2.8 |
29100 |
||
|
FC2400 |
Ø2400 |
14200 |
2.5-4 |
4650-7450 |
455 |
18.5 |
4 |
41000 |
||
|
2FC1200 |
Ø1200 |
8400 |
5-8 |
2340-3740 |
240 |
7.5X2 |
0.4X2 |
19600 |
||
|
2FC1500 |
Ø1500 |
10500 |
4-6 |
3660-5480 |
370 |
7.5X2 |
0.8X2 |
30700 |
||
|
2FC2000 |
Ø2000 |
12900 |
3-5.5 |
6480-11800 |
640 |
15X2 |
2.8X2 |
50000 |
||
|
2FC2400 |
Ø2400 |
14200 |
2.5-4 |
9300-14900 |
910 |
18.5X2 |
4X2 |
67900 |
||
|
2FC3000 |
Ø3000 |
14300 |
2-3.2 |
14600-23400 |
1410 |
22X2 |
4X2 |
84900 |
||
