Description

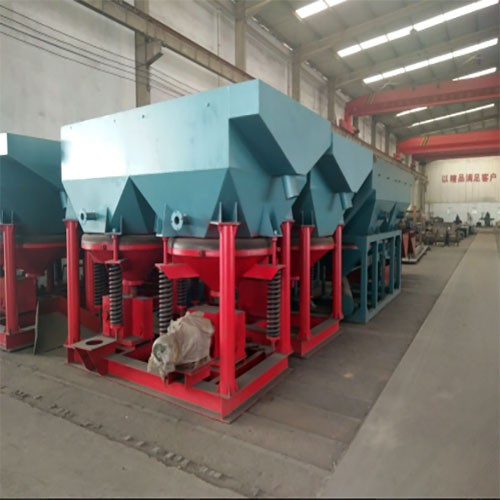

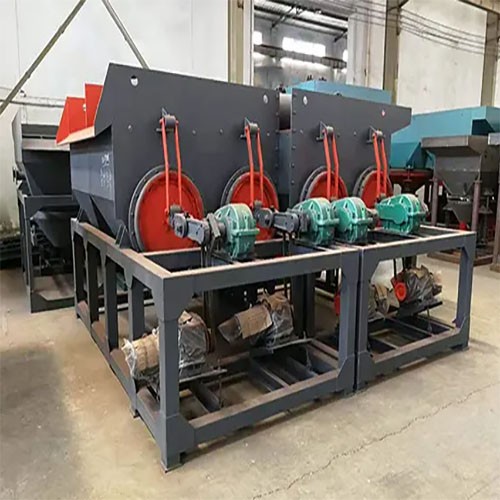

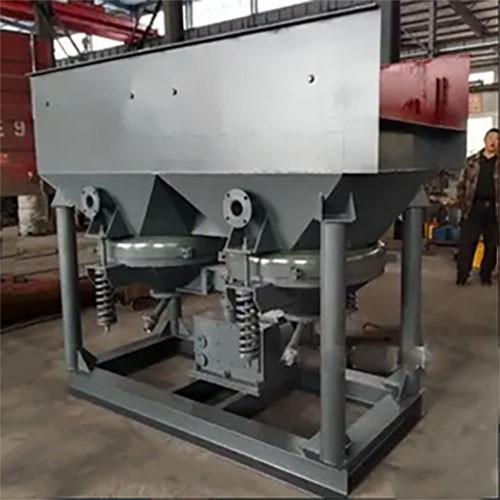

Trapezoid Jigger has eight jigging chambers,the chambers are divided into two columns with four chambers in each column.It gradually widens trapezoidal from the feeding to discharge end. The machine has large handing capacity,good adaptability and is suitable for medium and fine particles processing with effective recovery limit of 53microns,which is widely used iron,manganese,tin and other gravity concentration plants in China. Under the screen,the water is supplied from the water pipe installed in the middle of the two columns into each chamber separately.Because of its high processing capacity,his recovery rate,wide feeding size,the machine is widely used in sand gold,tin and other mineral sand concentration, and becomes an ideal equipment in the field of sand ore concentration.
Technical Parameter:
|
Model |
2LTC-366/8T |
2LTC/6109/8T |
|
Section |
Trapezoid |
Trapezoid |
|
Column |
2 |
2 |
|
Jigging |
8 |
8 |
|
Jigging Area(㎡) |
2.16 |
5.76 |
|
Stroke Factor |
0.68-0.41 |
0.52-0.35 |
|
Stroke(mm) |
0-50 |
0-50 |
|
Jigging Frequency |
120-300 |
120-300 |
|
Capacity(t/h) |
3-6 |
20-30 |
|
Power(kw) |
1.1*2 |
1.5*4 |
