Description

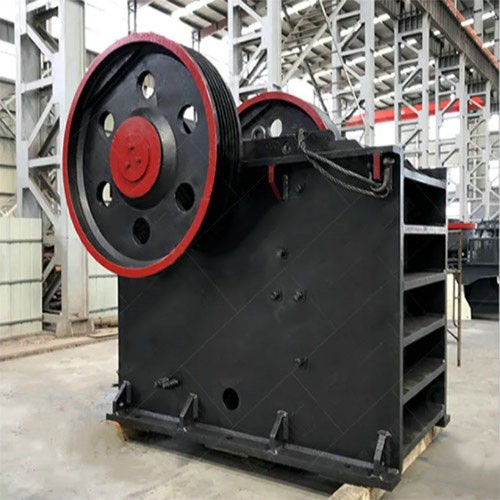

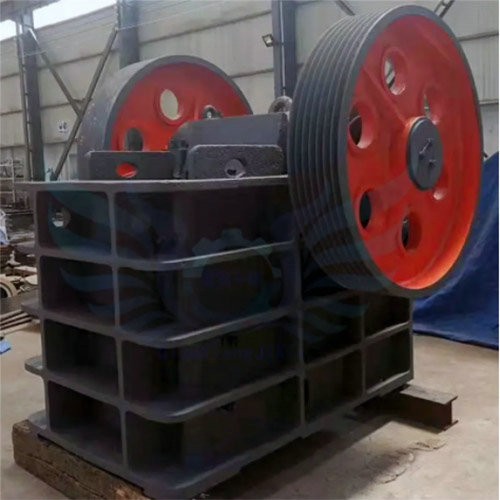

The strip and strip pulley are driven by a motor,and the movable jaw moves up and down via eccentric shaft.The angles between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces.It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring,then the end products come out from the crushing cavity.
Materials:River pebbles.granite,bassaltmiron ore,limestone,quartz stone,construction waste,gold and so on.
Technical Parameter:
Model
Feed Opening Size
(mm)
Feed Size
(mm)
Outlet Opening Size
(mm)
Capacity(T/H)
Power(KW)
PE150X250
150X250
≤125
10-40
1-5
5.5
PE250X450
250X450
≤210
20-60
5-20
15
PE250X1000
250X1000
≤210
25-60
15-52
30
PE400X600
400X600
≤340
40-100
16-65
30
PE500X750
500X750
≤425
50-100
50-100
55
PE600X900
600X900
≤500
65-160
50-160
55/75
PE750X1060
750X1060
≤630
80-180
130-330
110/132
PE900X1200
900X1200
≤750
100-210
200-500
132
PE1200X1500
1200X1500
≤1020
150-300
800-1200
160-180
