Description

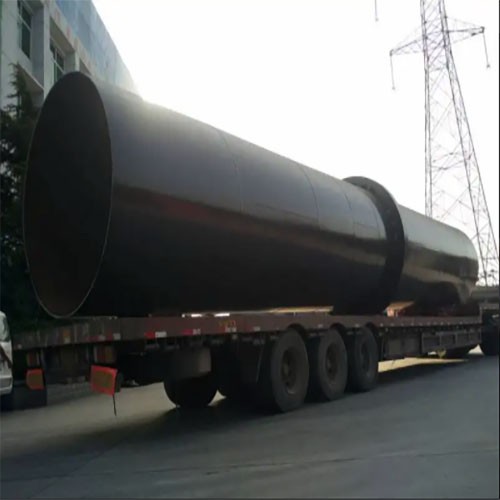

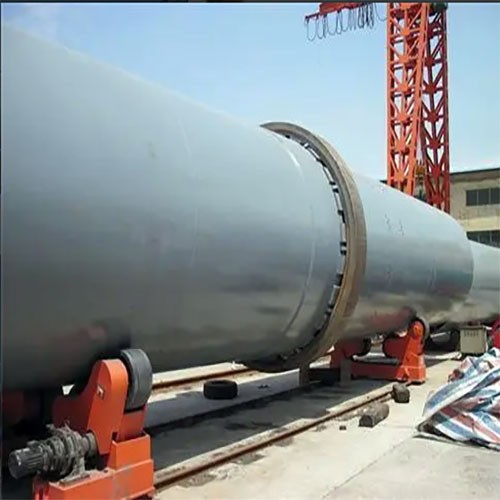

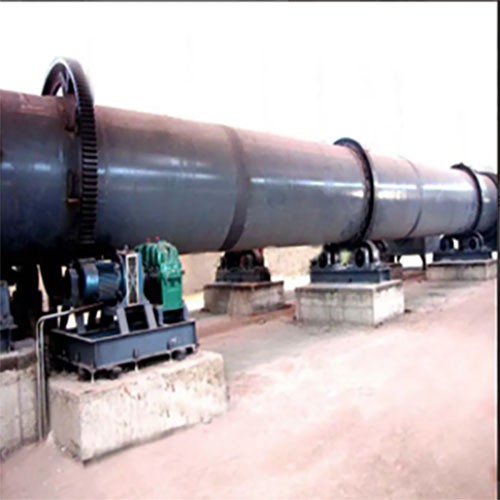

Rotary Kiln refers to rotating calcination kiln,belongs to construction material equipment.According to the different materials,the kiln can be divided into cement kiln,metallurgy chemical kiln and lime kiln.The cement kiln is mainly used for calcination of cement clinker,and it has two types of dry and wet methods.And the metallurgy chemical kiln is mainly applied in metallurgy industries,such as magnetizing roast of poor iron ore in ironworks,oxidizing roast of the chromium and nickel ore,roast of the high aluminum bauxite in refractory material industry,roast oh clinker and aluminum hydroxide in aluminum manufacturer,and roast of the chromium ore and chromium powder in chemical industry.The lime kiln is mainly used for roasting the active lime and light roasting of the dolomite in ironworks and ferry-carbon alloy works.
Technical Parameter:
|
Model |
Ø2.5x50 |
Ø3X48M |
Ø3.2X50M |
Ø3.3X50M |
Ø3.5X54M |
Ø4X60M |
Ø4.3X74M |
||
|
Capacity(T/D) |
200 |
600-700 |
1000 |
1200 |
1500-1800 |
2500 |
3500 |
||
|
Cylinder Slope (%) |
3.5 |
3.5 |
3.5 |
4 |
4 |
4 |
4 |
||
|
Support Q’ty |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
||
|
Type of Thrust Roller |
Mechanical |
Hydraulic |
|||||||
|
Rotation Speed |
Main Driving(R/MIN) |
0.62-1.86 |
0.676-3.38 |
0.36-3.57 |
0.36-3.57 |
0.39-3.9 |
0.41-4.07 |
0.4-4.0 |
|
|
Auxiliary Driving (R/MIN) |
6.25 |
9.36 |
6.5 |
5.61 |
7.66 |
8.2 |
7.93 |
||
|
Main Driving |
Motor |
Model |
YCT355-4A |
Z2-101 |
ZSN4-280-091B |
ZSN4-280-091B |
ZSN4-315-092 |
ZSN4-355-092 |
ZSN4-315-12 |
|
Power(KW) |
55 |
100 |
160 |
160 |
220 |
315 |
400 |
||
|
Speed(R/MIN) |
1000 |
1500 |
1500 |
1500 |
1000 |
1000 |
1000 |
||
|
Gearbox |
Model |
ZSY122M-2 |
ZSY145-1-1 |
ZSY450-40-V |
ZSY450-40 |
NZS995-28VIBL |
YNS1110-22.4VBR |
YNS1400-31.5VIBL |
|
|
Ratio |
49--63 |
50 |
40 |
40 |
28 |
22.4 |
31.5 |
||
|
Auxiliary Driving |
Motor |
Model |
Y122M-4 |
Y160M-6 |
Y160M-4B |
Y160M-4 |
Y200L1-6 |
Y180L-4 |
Y200L-4 |
|
Power(KW) |
4 |
7.5 |
15 |
11 |
18.5 |
22 |
30 |
||
|
Speed(R/MIN) |
1440 |
970 |
1460 |
1460 |
970 |
1470 |
1470 |
||
|
Gearbox |
ZL35-16 |
ZL35-7-1 |
ZSY160-31.5-II |
ZSY355-31.5 |
ZSY355-31.5 |
ZSY355 |
YNS440-45IIR |
YNS497-45ZC |
|
|
Ratio |
40.44 |
14 |
31.5 |
31.5 |
45 |
45 |
45 |
||
|
Total Weight (T) Excluding refractory bricks) |
188.3 |
207 |
256.5 |
281 |
341 |
434 |
550.5 |
||
