Description

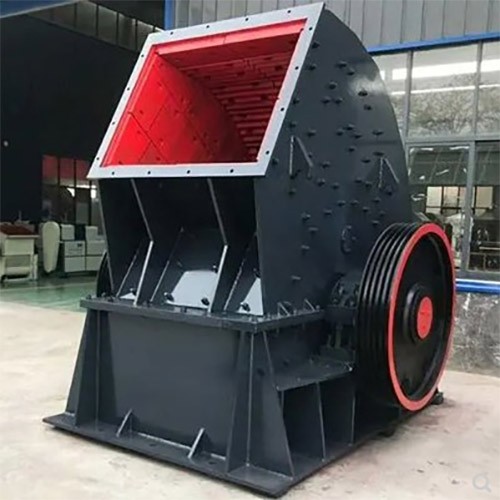

Hammer Crusher used for crushing medium hardness and brittle materials,such as limestone,coal and other materials. The maximum comprehensive strength of the materials to be broken no more than 150MPa.Mainly used in cement,mining,coal preparation,power generation,chemical and building materials sectors.
Technical Parameter:
|
Model |
Max Feed Size(MM) |
Max Outlet Size(MM) |
Max Capacity (T/H) |
Motor Power (KW) |
Weight (KG) |
|
PC530X300 |
70 |
15 |
10 |
15 |
950 |
|
PC600X400 |
100 |
15 |
15 |
18.5 |
1450 |
|
PC800X600 |
120 |
20 |
24 |
55 |
3480 |
|
PC1000X800 |
200 |
30 |
60 |
110 |
6700 |
|
PC1000X1000 |
200 |
40 |
80 |
132 |
8650 |
|
PC1300X1200 |
250 |
40 |
200 |
240 |
14800 |
|
PC1600X1600 |
320 |
50 |
350 |
480 |
37500 |
