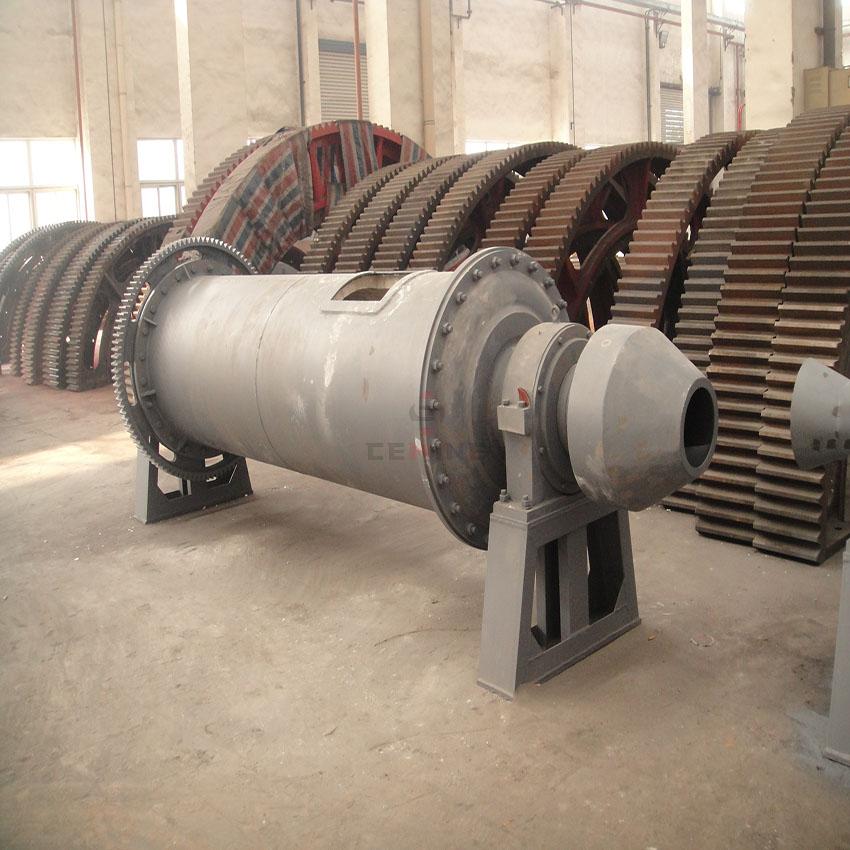

Silica Sand Grinding Mill
The welding parts:Cabinet,
dust-collecting hopper,
dust-discharge hopper,
guard for stairs.
Filtering bag,
supporting pilar,
cage
Waved plate(Q235)
III. Bucket Elevator:HL200x11m
Driven bearing speed:43.14r/min,
hopper speed:0.85m/s,
bucket volume:2.1L,
Motor:Y132S-4,5.5kw,
reducer:JZQ350-II, i=23.34，
V belt:131900(three sets)
chain bucket quantity:53pcs.
IV:Powder Separator TS-1:
01Techincal Prameter:
|
Capacity:12-20t/h |
Air Volume:16000m³/h |
|
Rotor Speed:250-500r/min |
Motor:Y160L-6，15kw |
|
Fan Spec:9-26-8C |
Fan motor:Y225M-4,380V,5.5kw. |
|||
02. Supply Scope:
|
coarse powder collecting unit |
sub-asembly |
|
flat washer |
fittings |
|
spreader plate |
sub-asembly |
seal ring |
asbestos rope |
|
|
media and coarse powder taper |
sub-asembly |
cyclone cylinder |
Q235A,anti-wearing ceramic |
|
|
support seat |
sub-asembly |
main bearing |
35CrMn |
|
|
feeding pipe |
anti-wearing steel plate |
rotate cage |
Unit |
|
|
frame housing |
Q235A |
guard vane |
4pc,sub-asembly |
|
|
air discharge bend pipe |
anti-wearing ceramic |
valve |
|
|
|
motor |
Y160L-6 |
transmission support |
sub-asembly |
|
|
bolt |
M12,50pcs |
nuts |
M12 |
