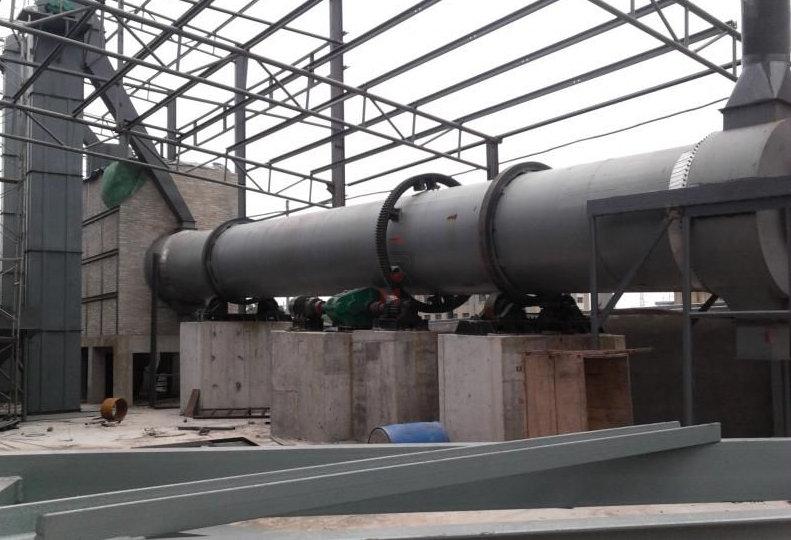

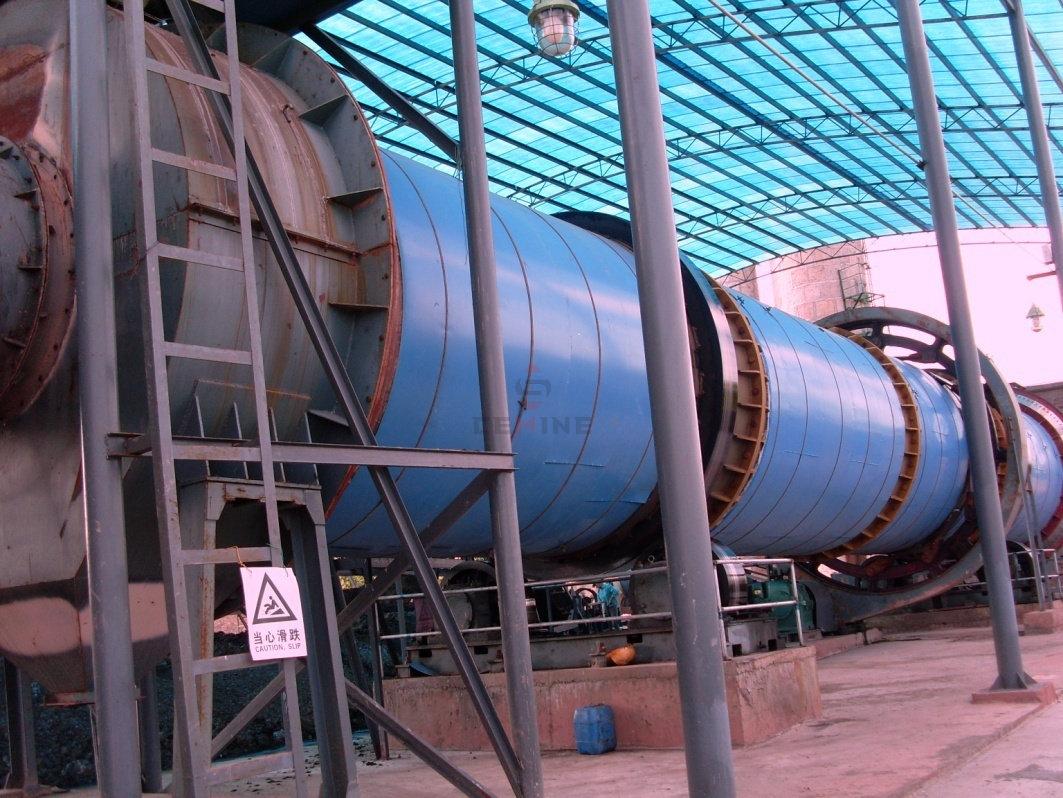

20TPH Iron Slag Drying Production Line
Background of Client's Requirements: Nepal 2017
According Client's requirement,Need to drying furnace iron slag initial moisture from 10% to 1%, the capacity 20tph.feed particle size less than 25mm, calorific value of 6000Kcal pulverized coal fuel selection, through our calculations, suggest that heating hot wind stove choose my company with 2.4*18m single cylinder rotary dryer, grinding machine and supporting the MP950 powder.
|
No |
Name |
Model |
Qty |
Unit |
Note |
|
1 |
Cylinder |
φ2.4×18m |
1 |
set |
Q345 boiler steel，δ=16 |
|
2 |
Feeding screw |
|
1 |
set |
High manganese steel， δ=12 |
|
3 |
Lifting plate |
Big guiding angle |
1 |
set |
High manganese steel |
|
4 |
Lifting plate |
Small guiding angle of backward tilt angle |
1 |
set |
High manganese steel |
|
5 |
Chain |
|
1 |
set |
|
|
6 |
Guide bar |
|
1 |
set |
|
|
7 |
Pinion |
Z=19、M=22 |
1 |
set |
ZG45 |
|
8 |
Big gear wheel |
Z=150、M=22 |
1 |
set |
ZG45 |
|
9 |
FrontTire |
|
1 |
set |
ZG45 |
|
10 |
RearTire |
|
1 |
set |
ZG45 |
|
11 |
Front wheel |
|
2 |
set |
ZG45 |
|
12 |
Rear wheel |
|
2 |
set |
ZG45 |
|
13 |
FrontCatchwheel |
|
1 |
set |
ZG35 |
|
14 |
Front sealing device |
Sealing scale |
1 |
set |
SS304 |
|
15 |
Rearsealing device |
Sealing rubber |
1 |
set |
|
|
16 |
Discharge device |
|
1 |
set |
Q235 |
|
17 |
Heavy hammer lock air valve |
400×400 |
1 |
set |
Q235 |
|
18 |
Reducer |
JZQ750 |
1 |
PC set |
Jiangsu Tailong |
|
19 |
Motor |
Y225-4,45kw |
1 |
set |
|
|
20 |
Control cabinet |
|
1 |
set |
frequency control |
|
21 |
External cylinder insulation |
|
1 |
set |
100mmRock wool+color steel plate |
